Enhanced Aesthetic Appeal

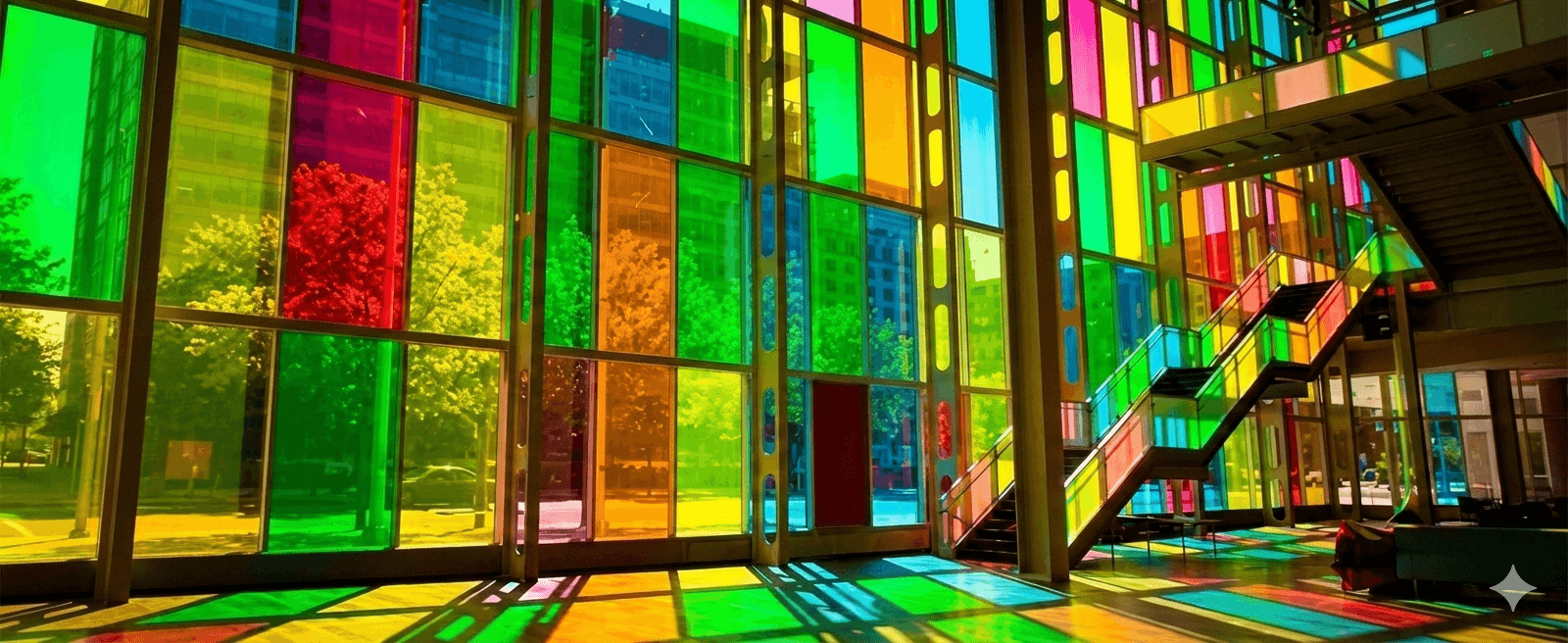

Color-tinted smart films add vibrant or subtle hues to glass, enhancing the design and ambiance of any space compared to standard frosted films.
Improved Glare Reduction
Unlike regular smart films, tinted versions effectively reduce glare and eye strain, making them ideal for offices, retail spaces, and sun-exposed areas.
Increased UV and Heat Rejection
Tinted smart films provide better solar control, blocking more UV rays and heat, improving energy efficiency, and keeping interiors cooler.
Unique Branding & Styling Options
Ideal for commercial spaces, they can be tailored to match brand colors, logos, and themes, making glass surfaces more distinctive and eye-catching.
Filmbase Colorful PDLC Film is designed for applications requiring customized colors such as gray, black, red, green, blue, and other vibrant shades. This innovative smart film combines switchable privacy with aesthetic versatility, making it an ideal solution for spaces that demand both functionality and creative expression.

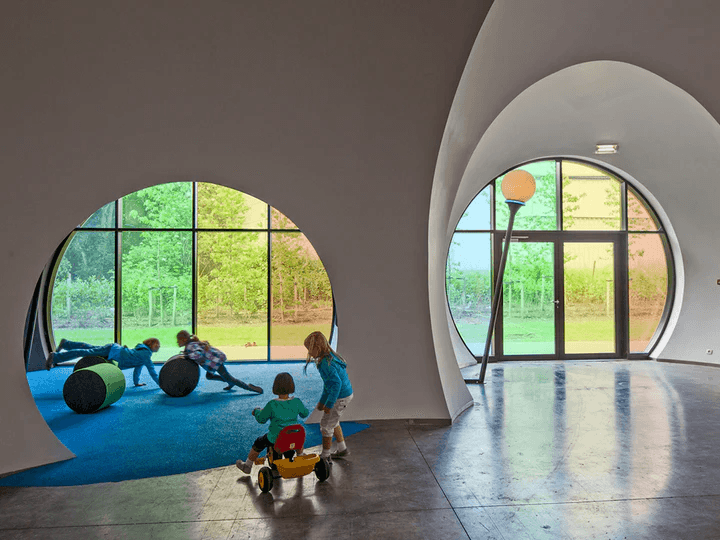

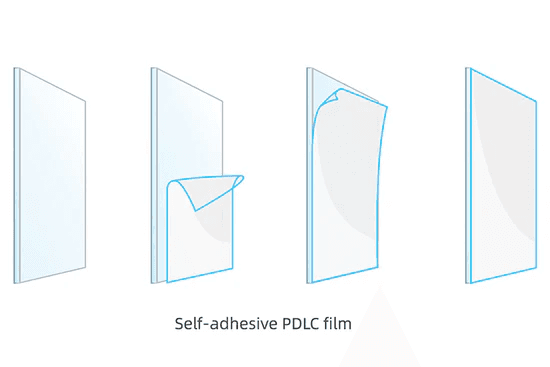

Widely embraced by art centers, kindergartens, supermarkets, theme restaurants, and modern retail spaces, this film enhances interior design while maintaining instant privacy control. It can be laminated between glass panels or self-adhesive on existing glass, offering flexible installation options. Whether for decorative partitions, branded storefronts, or dynamic environments, Filmbase Colorful PDLC Film transforms ordinary glass into a striking, interactive feature that complements diverse architectural styles.
Color-Tinted PDLC Technology
PDLC (Polymer Dispersed Liquid Crystal) technology is an innovative solution that transforms the functionality of glass by integrating liquid crystal particles into a polymer matrix. When an electrical current is applied, the liquid crystals align to allow light to pass through, making the glass transparent. Without power, the crystals scatter light, turning the glass frosted for privacy. This switchable functionality provides dynamic control over transparency, offering applications in smart windows, partitions, and displays. PDLC is energy-efficient, easy to install, and widely used in residential, commercial, and automotive industries for its ability to combine privacy, aesthetics, and functionality.
Self-Adhesive PNLC Smart Film Technical Specifications
Optical Parameter
| Items | ON/OFF | Specifications | Test Methods/Standards |
|---|---|---|---|
| Operating Voltage | ON | 60V | Multimeter / Voltage Regulator, WGW |
| Power Consumption | ON | ≤ 5W/m² | Multi-parameter electric measuring instrument |
| Viewing Angle | ON | ≥ 160° | Visual Inspection |
| UV Blocking Rate | OFF | ≥ 99% | Optical transmittance tester |
| Infrared Blocking Rate | OFF | ≥ 60% | Optical transmittance tester |
| Response Time | OFF→ON ON→OFF | ≤ 30 ms ≤ 200 ms | Liquid crystal parameter integrated tester |
| Operating Temperature | -- | -30°C ~ 50°C | Constant temperature and humidity testing machine |
| Life-span | -- | 100,000 Hours | GB18910.5-2008 |
| Switching Times | -- | ≥ 2 million times | Self-made on/off tester |
